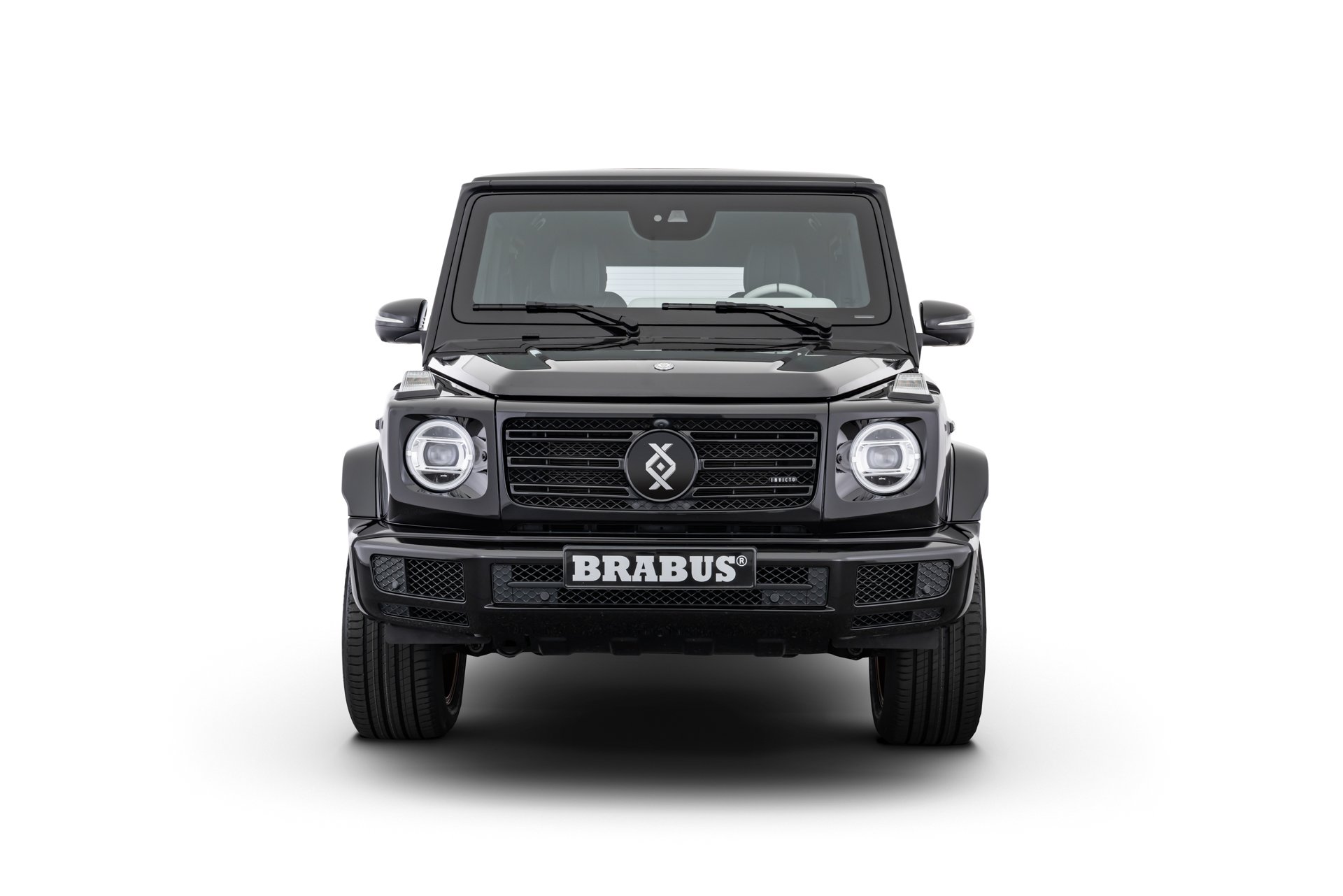

INVICTO PURE VR6 Plus ERV fully certified armoured vehicle with blast protection

Power 404 kW / 550 hp | Torque 800 Nm | 0-100 km/h 11.0 s | Vmax 210 km/h / 130 mph
Fuel Economy* city 21,9 l/100km | highway 16,6 l/100km | combined 18,3 l/100km | CO2 428 g/km

Invicto Pure - Undercover security

The PURE is the understatement INVICTO, just pure protection. With the INVICTO Shelter Cell and all its guarding components, it offers maximum protection at VR6 Plus ERV level. At the same time, however, the exterior and interior remains as close to series as possible. Therefore, the INVICTO PURE is “undercover” in double sense.

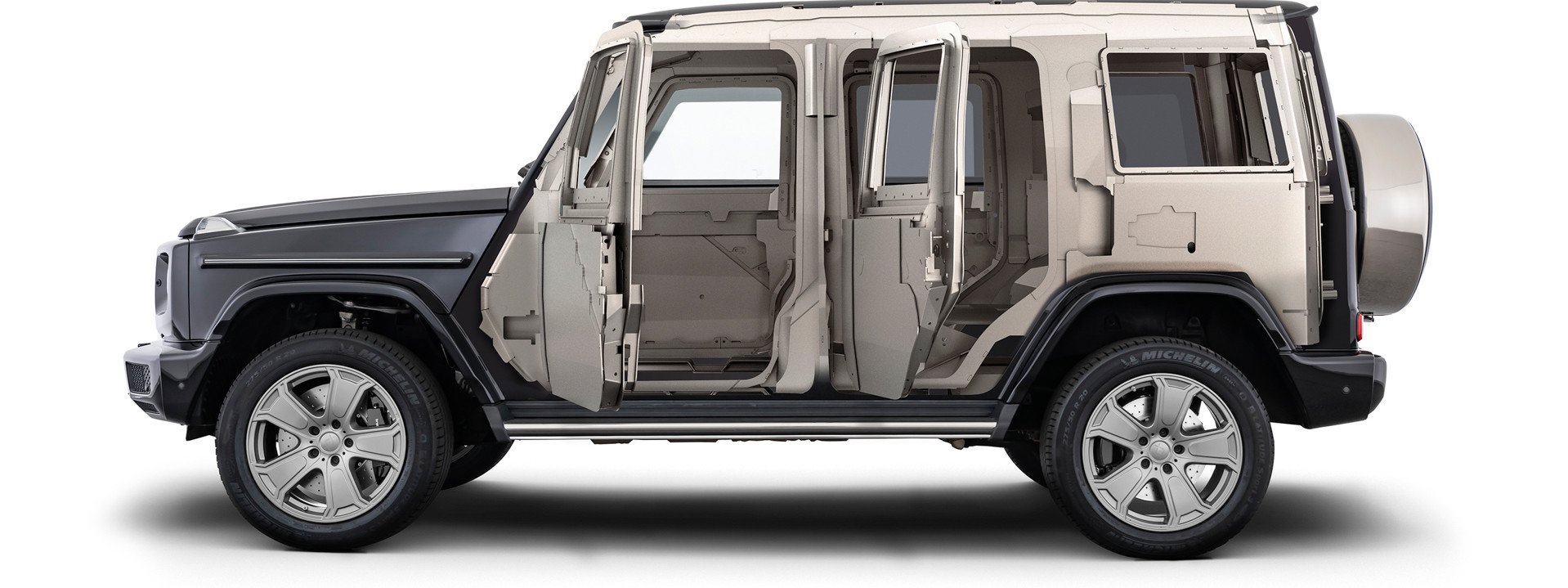

Invicto Shelter Cell. Full metal jacket.

The highest technical standards were also paramount for Brabus Automotive when it came to developing the new armoured vehicle based on the Mercedes-Benz G-Class. Right from the very start, the overall ballistic concept was designed for a maximum protective effect corresponding to the level of OEM factory armour plating. Unlike with other retroactively armour plated vehicles, the components of the protection system were not individually welded into the vehicle’s bodywork structure; rather, the engineers at Brabus Automotive developed a self-contained, self-supporting, bolted structural cell, the so-called INVICTO Shelter Cell. It is inserted into the body shell in a disassembled state and then constructed. One of the structural features of the shelter cell is the zero-joints design which means that there is absolutely no entry narrowing – similar to a vehicle armour plated in an OEM factory. The armour components are mounted to the shelter cell without any gaps. Unavoidable weld seams, on the doors for example, are achieved with material overlapping and so-called labyrinths. The design of the upper windscreen frame is also innovative.

It was only once the individual elements of the shelter cell proved their protective effect that the entire cell was tested in the vehicle. Every single material pairing and screw connection was tested by being shot at from several angles and at projectile speeds which are well beyond the standard speed of the calibre being protected against.

Power & Sound. Outstanding Performance.

The maximum performance kit for the G500 is the BRABUS PowerXtra B40S-550. Each kit consists of two BRABUS special turbochargers with larger compressor unit and modified core assemblies with reinforced axial bearings. The performance increase is completed with the BRABUS PowerXtra control module for the engine control unit. In addition to a bump in peak torque from 610 Nm to 800 Nm, the rated output jumps by 115 kW/156 hp from 310 kW/422 hp to 404 kW/550 hp. The plug-and-play control unit is adapted to the production electronics.

The INVICTO top-speed is limited to 210 km/h in general.

Wheels & Chassis. Heavy duty.

The added weight of the overall vehicle due to the armour plating is comparatively low at around 1,000 kilograms, but the load-bearing capacity of the chassis must be modified to meet the high requirements of Brabus Automotive when it comes to driving dynamics and life span. The necessary adjustments cover the entire front and rear axle construction of the vehicle. The entire wheel suspension, for example, has been replaced by own new development, while frame reinforcements around the longitudinal beams and the spring dome increase the strength of the original vehicle structure. The obligatory verification of the new construction included simulations using the finite element method (FEM), component analyses, stationary endurance runs and road tests. Thanks to this process established by Brabus Automotive, the extreme lifespan requirement can be ensured in accordance with OEM requirements, even with materials under the greatest of loads.

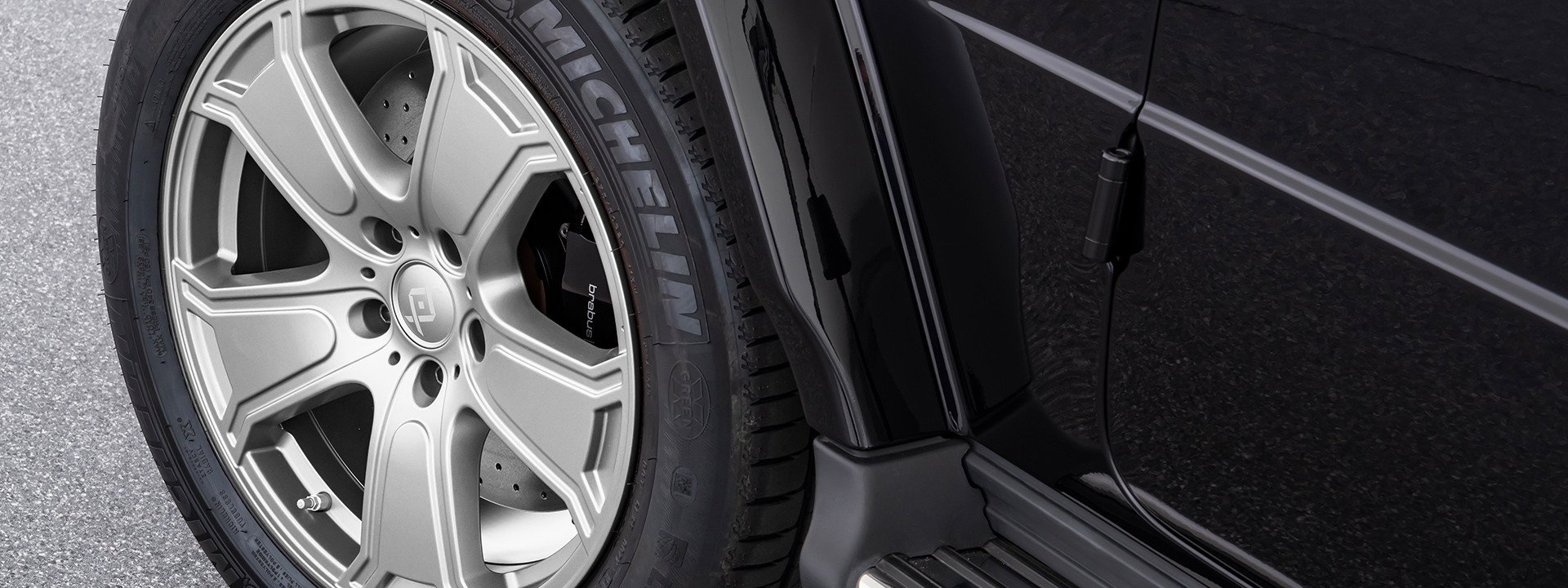

To ensure a high degree of driving dynamics, Brabus Automotive equips the chassis with reinforced springs, stabilisers and shock absorbers. The shock absorbers of the active chassis now have a pipe diameter of 60 instead of the previous 50 mm. A modified braking system with 402-mm brake discs and six-piston brake callipers at the front and 380-mm brake discs and four-piston callipers at the back ensure adequate deceleration, even with the maximum additional load. Wheels with increased load-bearing capacity and a special run-flat system developed by Brabus Automotive round off the chassis adjustments of the vehicle.

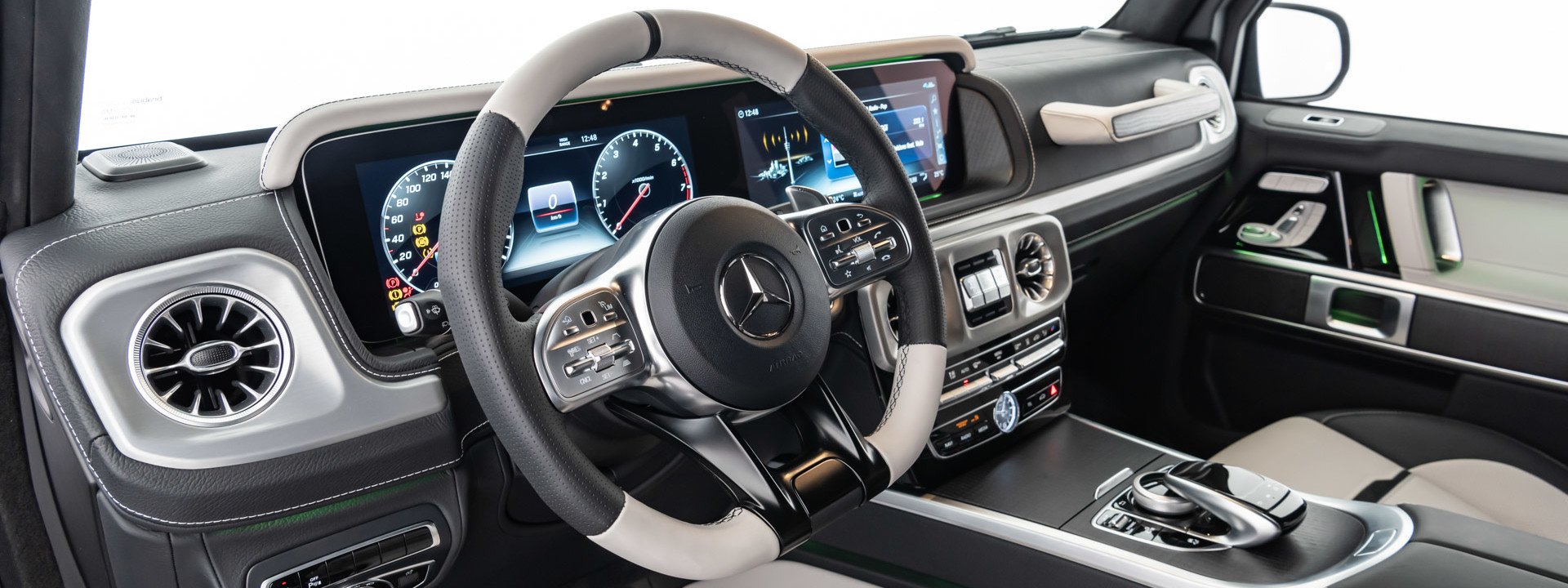

Interior. Inconsuspicuous.

The INVICTO PURE remains standard, luxurious and therefore inconspicuous.

For an individual configuration of their INVICTO customers can select various options from the accessory program, for example a lightning and signal systems, auxiliary roof lights, a fire extinguishing system, an IR package including a night vision device or a fresh air system with ABC filter , just to mention a few.

Equipment Highlights

Armouring

INVICTO Shelter Cell consisting of:
Hot formed armour steel plates
3D printed protection elements
Fabric structures, fibre structures, ceramic and metallic composites
Complete bulletproof glazing composites
Window lifter front left and right
Individual assemblies with blast protection ERV (Explosion Resistant Vehicle)
Maximum safety on VR6 Plus ERV niveau
Ballistic testing of very single material pairing and screw connection
Extreme long-life durability requirement while heavy material usage

Individualisation

Each supercar is individually made and customized to your wishes. Please contact us for your individual configuration.
Intercom system
Lightning and signal systems
Auxiliary roof lights
Fire extinguishing system
IR package including a night vision device
Fresh air system with ABC filter
INVICTO floor mats
Entry panels with brabus|automotive logo

Wheels & Chassis

Reinforced springs, stabilisers and shock absorbers with extended diameter to 60 mm
Modified braking system
Front: six-piston brake callipers with 402mm brake disks
Rear: four-piston brake callipers with 380mm brake disks
Invicto wheels with higher load-bearing capacity
Brabus automotive run-flat system

Performance upgrade

Exhaust System
BRABUS valve-controlled sports exhaust system
PowerXtra (Powerboost)
BRABUS performance kit PowerXtra B40S - 550
consisting of:
2 BRABUS special turbocharger with larger compressor unit, 2 modified hull groups with reinforced axial bearing, BRABUS PowerXtra engine electronics control unit
Power: 404 kW ( 550 hp ) - series: 310 kW (422 hp)

Torque: 800 Nm at 5.600 rpm. - series 610 Nm


Performance & Fuel Economy

Technical Data

Engine8-Cylinder
Power404 kW / 550 hp
0-100 km/h11.0 s
Vmax210 km/h / 130 mph

Fuel Economy

city21,9 l/100km
highway16,6 l/100km
combined18,3 l/100km
CO2 Emissions428 g/km

Price

Notices

* All stated driving performance figures are approximate values. They depend on vehicle-specific details such as the vehicle model, equipment, curb weight, final-drive ratio, tire/wheel combination, transmission design and aerodynamic equipment of the individual vehicle. Details of performance upgrades and/or performance kits are average values. Deviations of +/- 5% are possible due to test conditions. Details about the total power output of factory engines modified with performance upgrades and/or performance kits are based on the manufacturer specifications in the vehicle title, which themselves can deviate by +/- 5%. BRABUS assumes no liability for reduced outputs of factory engines going beyond this. Subject to technical modifications without notice. The stated figures were determined in accordance with the prescribed measuring method (Directive 80/1268/EEC in the currently valid version). The figures do not refer to an individual vehicle and are not part of the offer, but are solely intended for comparison between different vehicle models.

** Torque was electronically controlled.

Efficiency & Fuel Economy

Fuel Economy*
city 21,9 l/100km
highway 16,6 l/100km
combined 18,3 l/100km
CO2 428 g/km

CO2-Efficiency*

A+ABCDEFGG

* Determined based on the measured CO2 emissions in consideration of the vehicle mass.
