BRABUS Crawler

Power 662 kW / 900 hp | Torque 1250 Nm | 0-100 km/h 3.4 s | Vmax 160 km/h / 99 mph
Fuel Economy*

BRABUS CRAWLER - A New Era of BRABUS Off-Road Power.

The BRABUS Crawler introduces a new era of BRABUS off-road power. An era defined by winners. By those willing to push the boundaries and experience new heights far beyond the beaten path. As the world’s first-ever BRABUS supercar based on its own chassis, this extreme adventure vehicle reimagines the meaning of driving fun at its core – merging the worlds of unstoppable power and confident elegance like never before. It is the apex of bold determination and pure adrenaline fueled go-anywhere performance. An uncompromising, purpose built dune racer designed to conquer the desert and vanquish the elements with its unmistakable 100% BRABUS character. Production will be limited to 15 units worldwide.

The BRABUS Crawler was conceptualized specifically for off-road action and therefore is not certified for use on public roads. Its beating heart is the BRABUS Rocket 900 4.5-liter V8 twin turbo displacement engine with specially developed turbochargers producing 900 horsepower and thus offers incredible performance. The brand new lightweight chassis of the BRABUS Crawler features a high-strength steel tube frame in striking BRABUS red and an open, four-seater body made of exposed carbon fiber. In combination with a range of extreme off-road highlight features including front and rear portal axles, damping and height adjustable shock absorbers, newly developed 20-inch BRABUS Monoblock HD forged wheels as well as a unique bespoke interior design – the BRABUS Crawler is fully equipped for any adventure. Are you ready? Experience new heights. Experience the BRABUS Crawler.

Design & Exterior. More Extreme Than Ever.

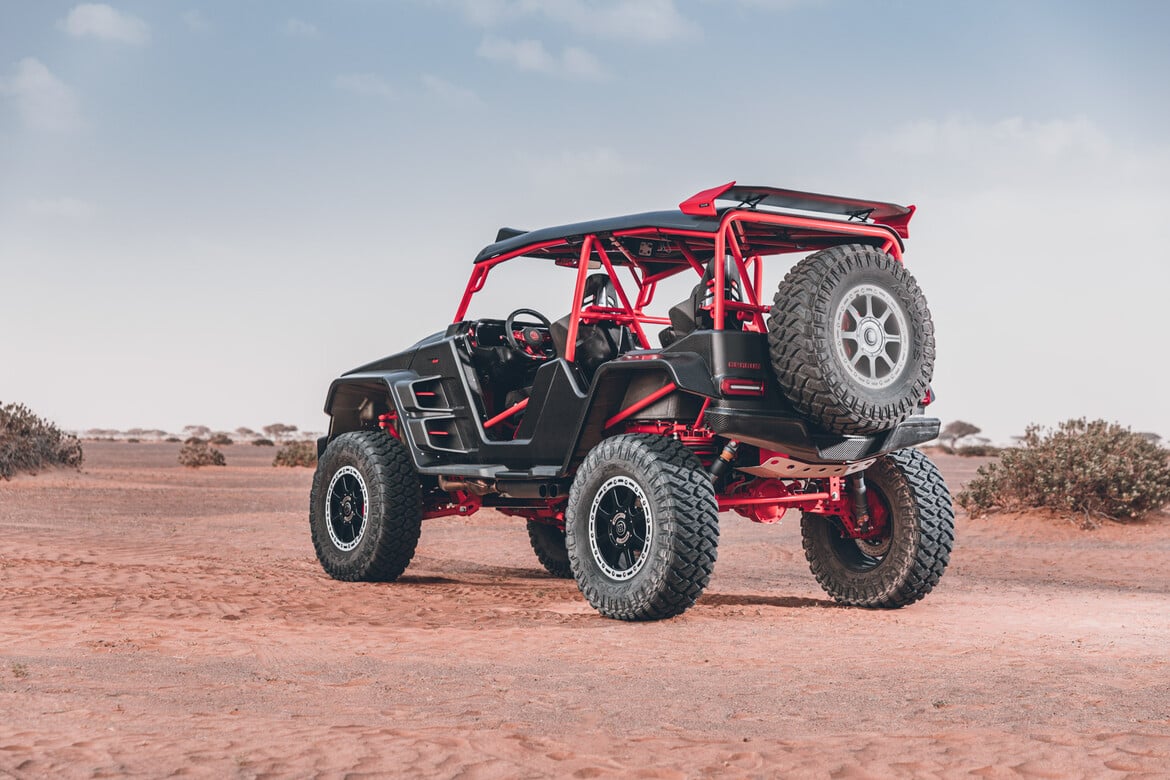

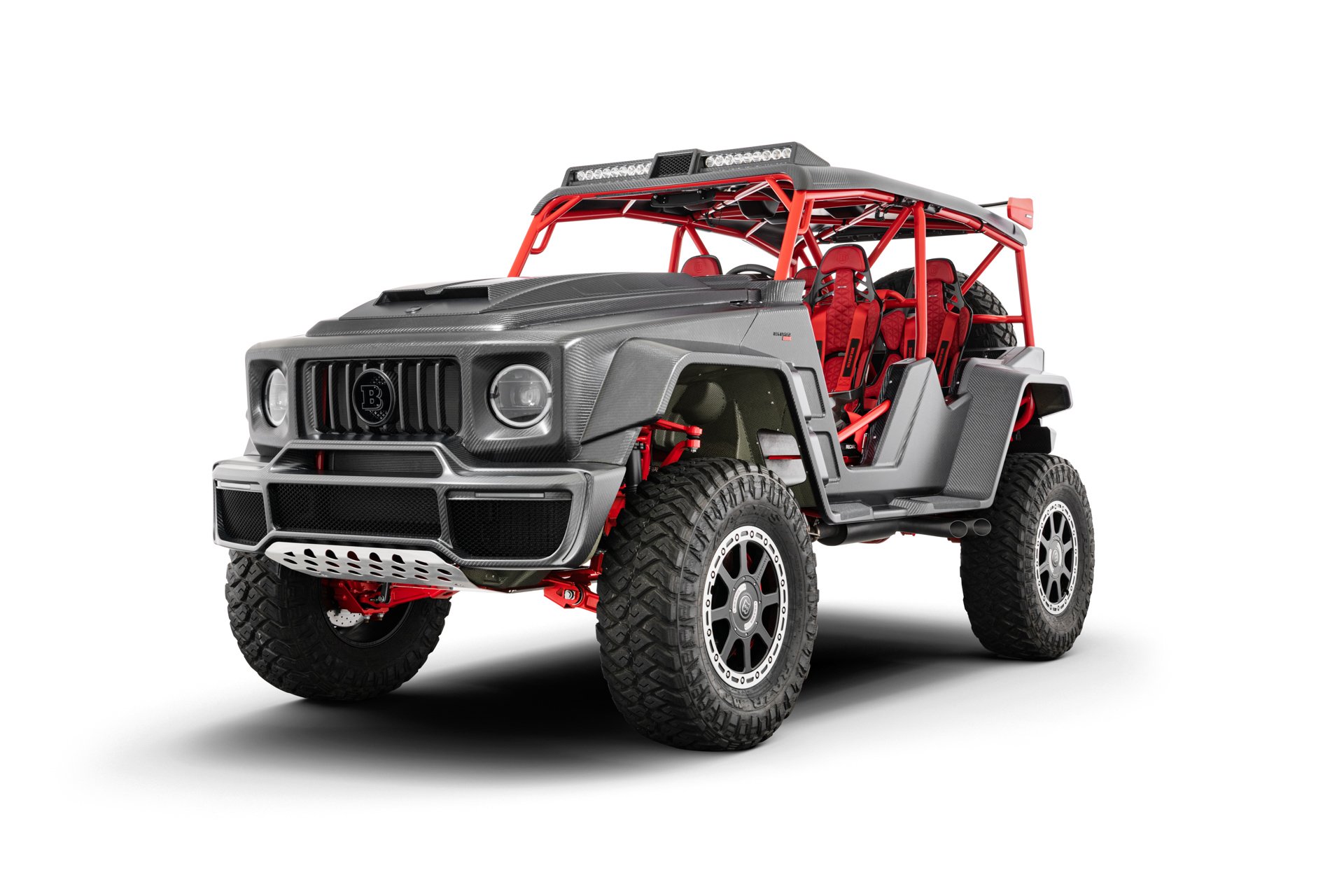

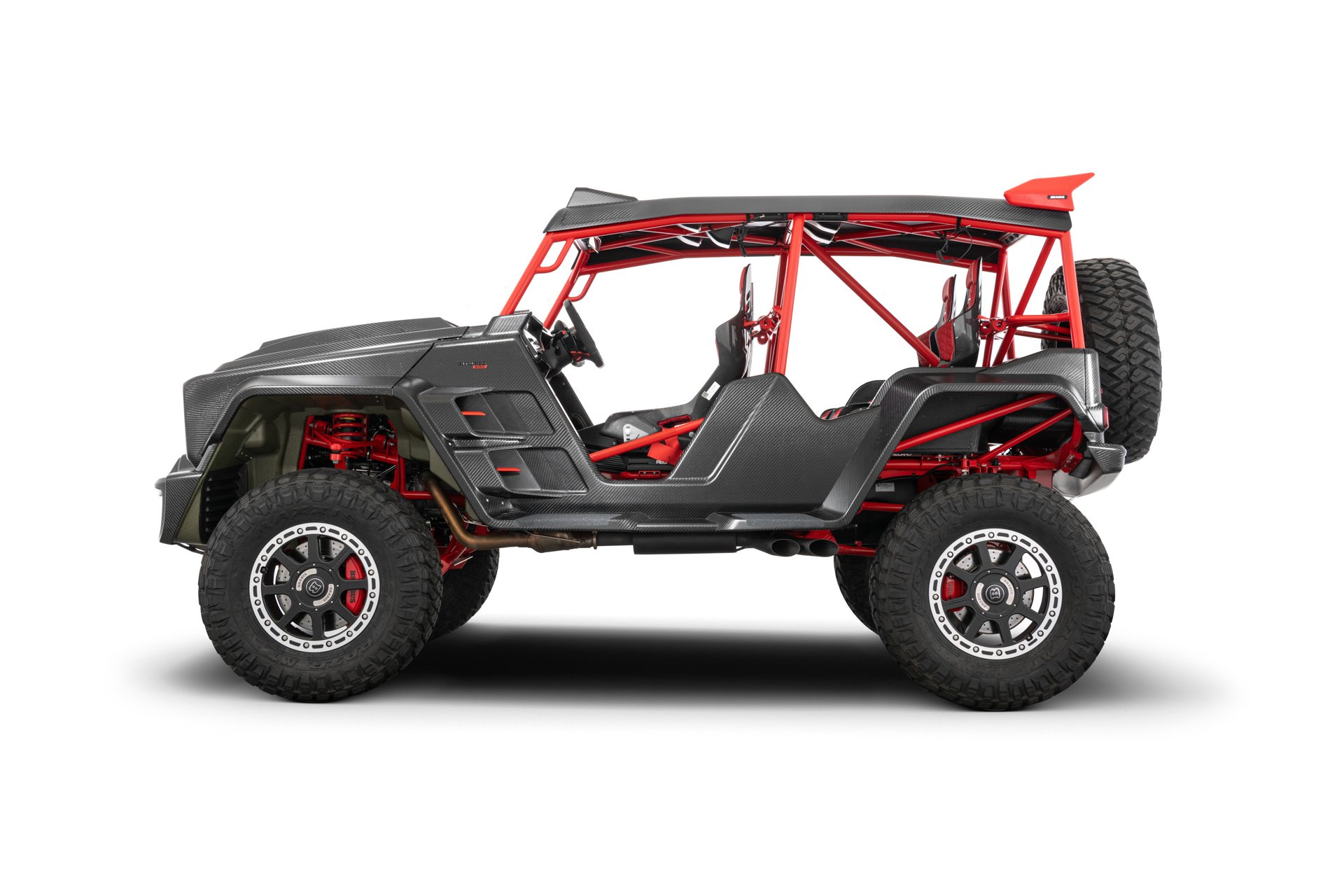

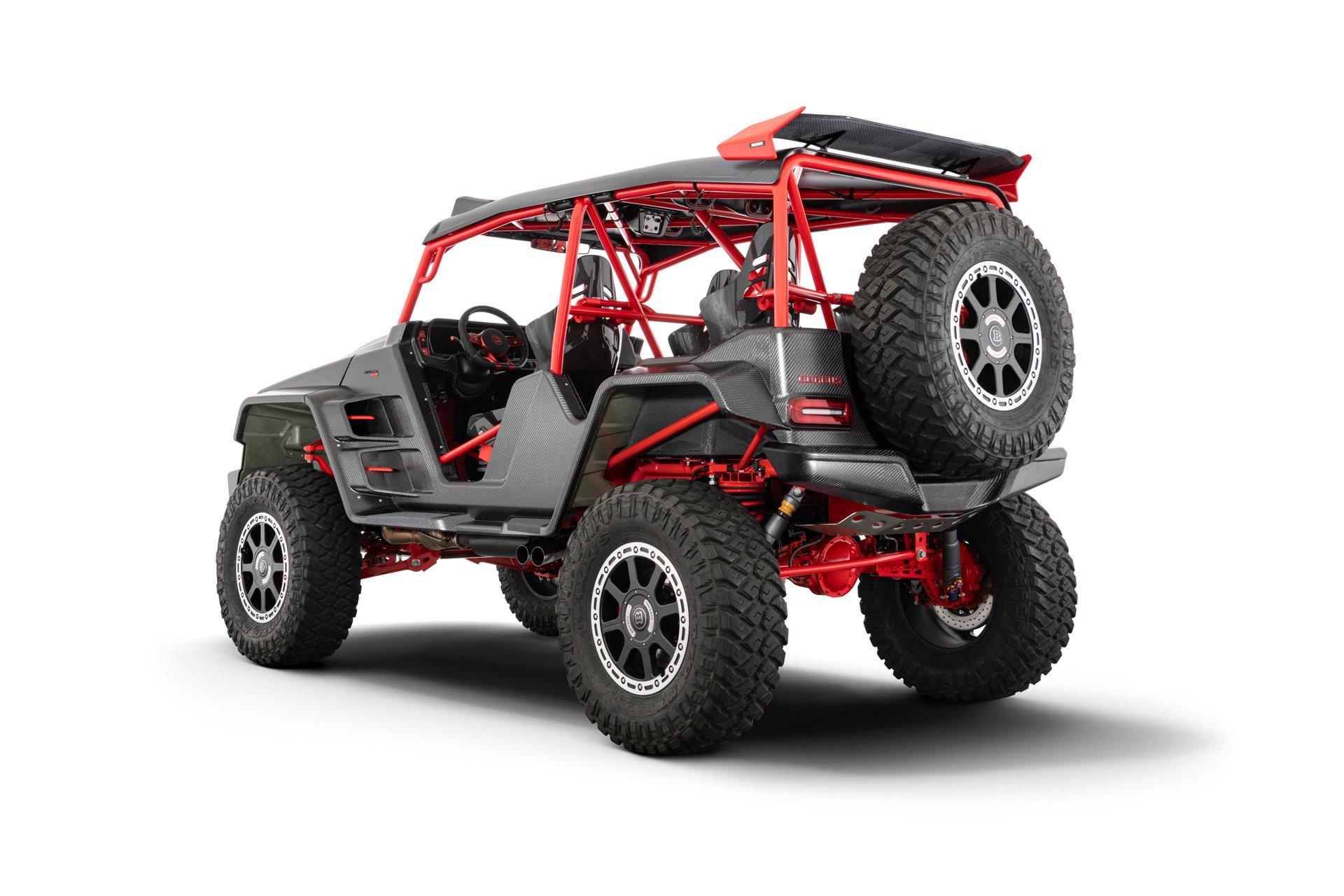

100% BRABUS – The exclusive chassis of the all-new BRABUS Crawler features a special maximum-strength steel tube frame in combination with an open, four-seater body made of high-grade exposed carbon fiber. Designed to reimagine our signature “Black and Bold” design language, this never before seen concept offers unmistakable looks and next-level stability no matter where your adventure will take you. In tune with the untamed power of a modern desert racer, the BRABUS Crawler features neither doors nor windows at the front, sides and rear. Instead, a carbon fiber roof panel mounted on the steel safety cell further reinforces the car’s integrity and provides excellent sun protection on your way across the sands. At the rear, the hallmark BRABUS rear wing adds an exceedingly sporty touch.

Power & Sound. Conquer the desert.

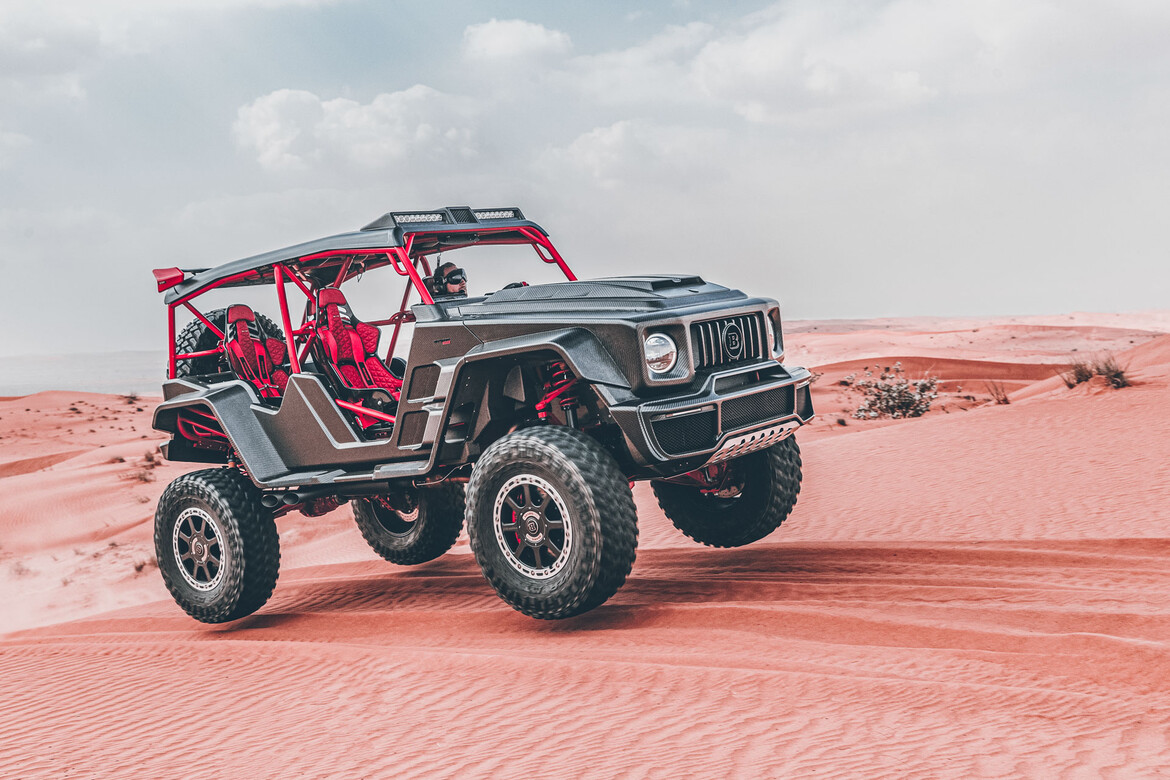

The all-new BRABUS Crawler offers the best in performance engineering and power delivery in hallmark BRABUS fashion. It is pure adrenaline on four wheels; the ultimate dune racer capable of accelerating from 0 – 100 km/h in just 3.4 seconds courtesy of the BRABUS Rocket 900 4.5 liter V8 twin turbo displacement engine producing 662 kW / 900 hp. The controlled 1050 Nm of uncompromising power is transmitted instantly to the desert sands via a nine-speed automatic transmission, which can be shifted automatically or manually – all at the driver’s leisure. With an electronically limited top speed of 160 km/h*, the BRABUS Crawler was designed to excel and claim the desert as its own.

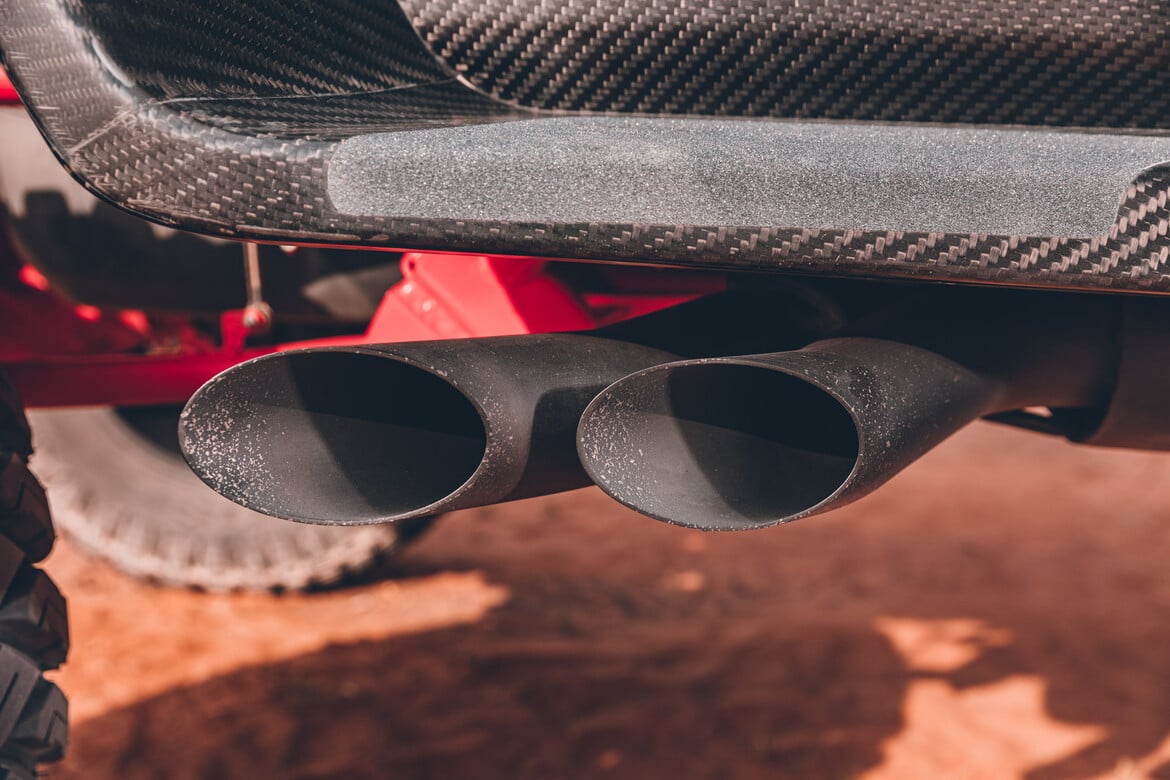

The BRABUS high-performance exhaust system with sporty matte black tailpipe trims and actively controlled valves ensures the right acoustics and looks for flying over the dunes, while further perfecting power delivery by reducing exhaust backpressure.

*Due to the off-road tire configuration, the top speed is limited to 160 km/h (99mph).

Wheels & Suspension. Forged Performance.

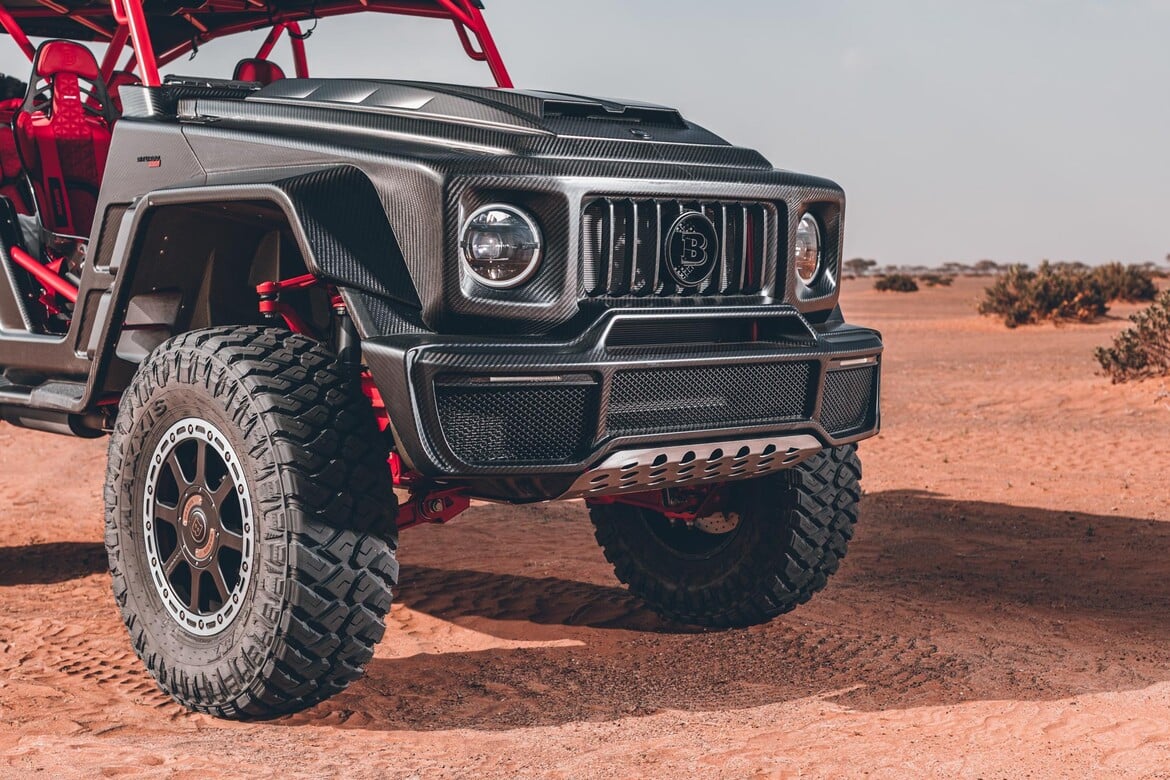

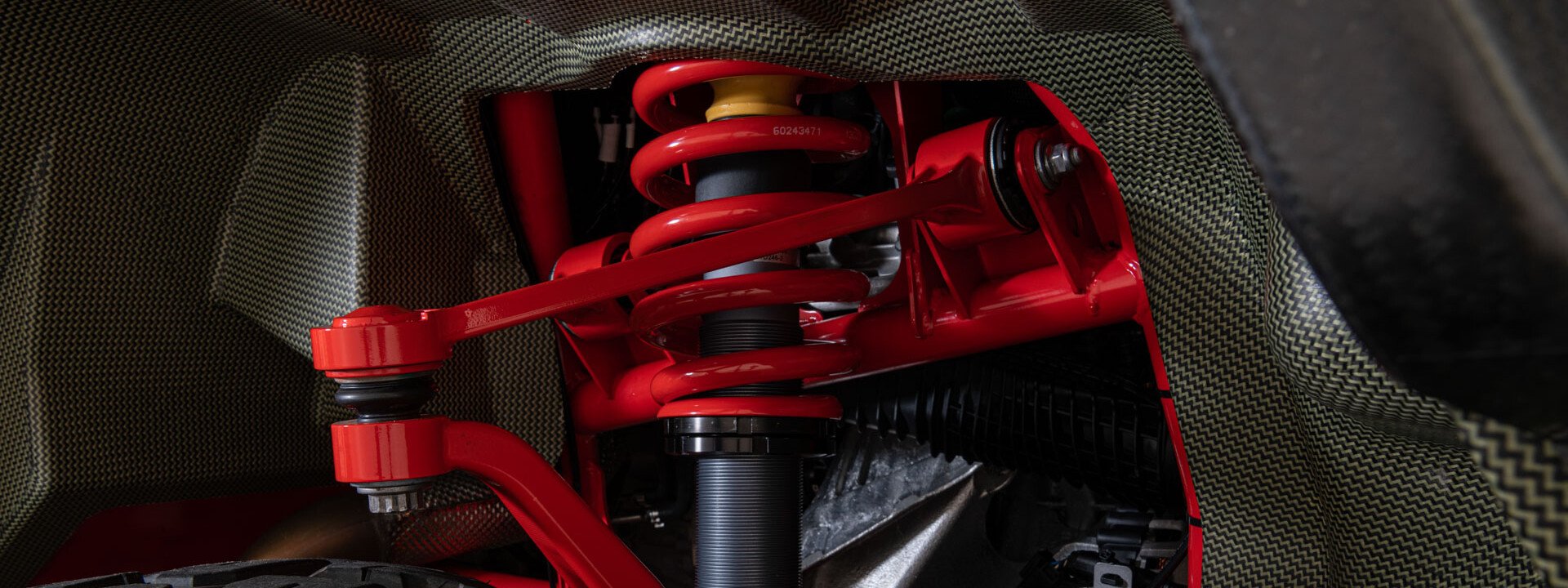

Conceptualized to withstand even the most extreme adventure beyond the beaten path, the all-new BRABUS Crawler is equipped with 20-inch BRABUS Monoblock HD forged wheels. State-of-the-art manufacturing processes and a signature 'black and bold' finish ensure a unique look as well as maximum strength. Extremely robust BRABUS aluminum struts developed specifically for this brand new model in combination with fully adjustable shock absorber ensure a ground clearance of 53 centimeters – fully adaptable to any terrain you are likely to encounter in the heart of the desert.

Interior. Push the Boundaries.

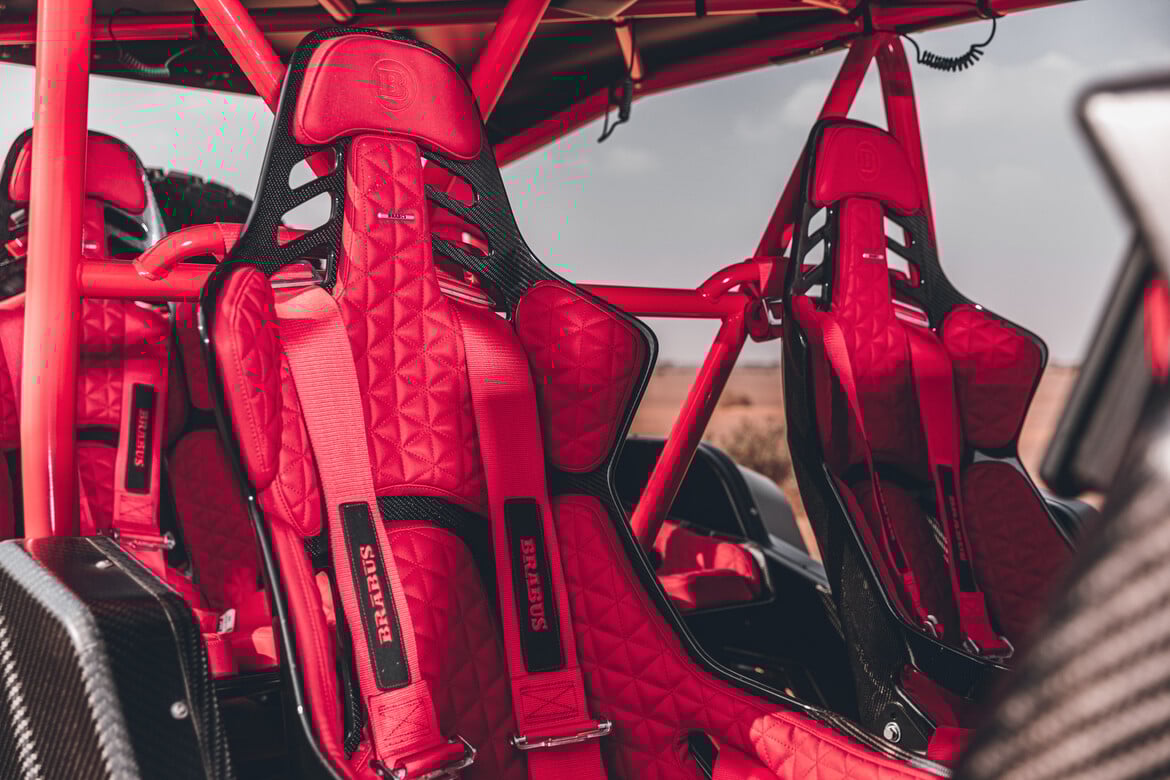

Experience next-level elegance and pure fascination like never before. Though unlike any other vehicle in our portfolio, the all-new BRABUS Crawler shares the same next-level driving experience and attention to detail as any other typical BRABUS supercar. Bespoke, full-carbon racing seats offer perfect support as well as outstanding comfort for the driver plus up to three passengers. Matching the distinct look of the heavy-duty tube frame, our interior-design specialists covered each seat with striking red TechFX – a high-tech fabric adopted from the BRABUS Marine range of high-performance sports boats. Beyond its unmistakable appearance, this material offers outstanding protection against fading of its color in the sun. Just as exceptional as this choice of material is the high-quality workmanship with millimeter-precise stitching and BRABUS logos embroidered into the headrest.

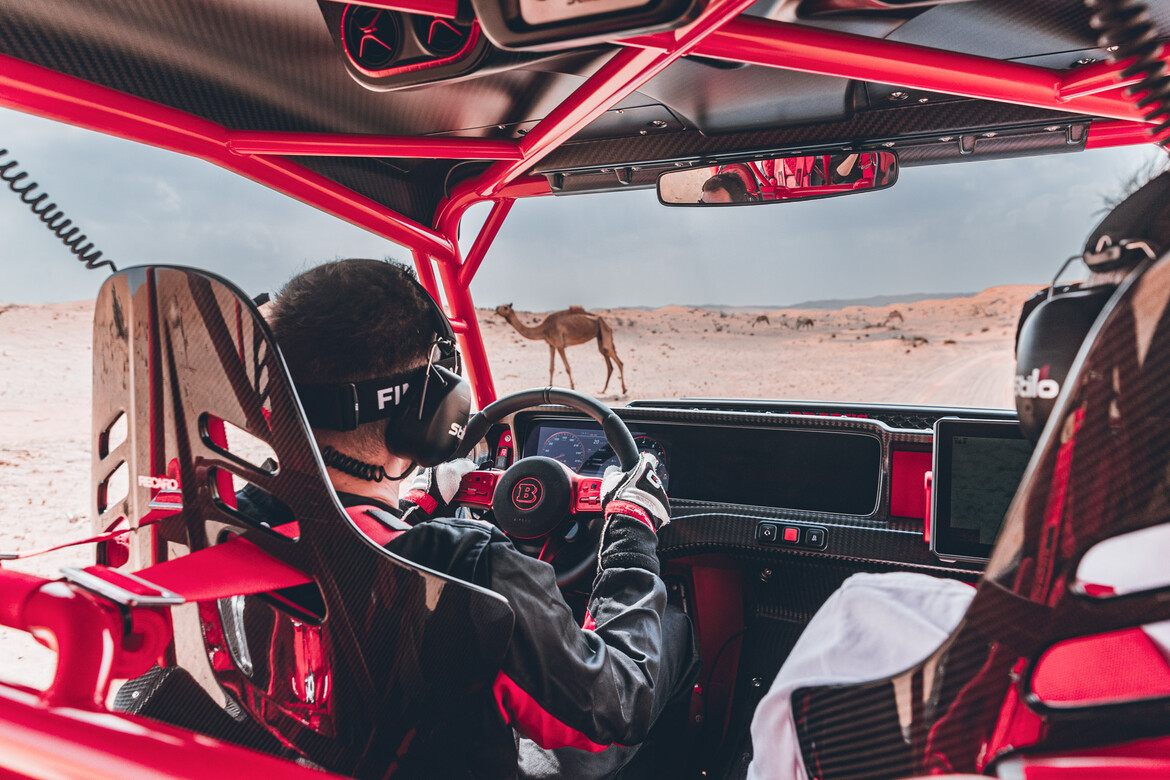

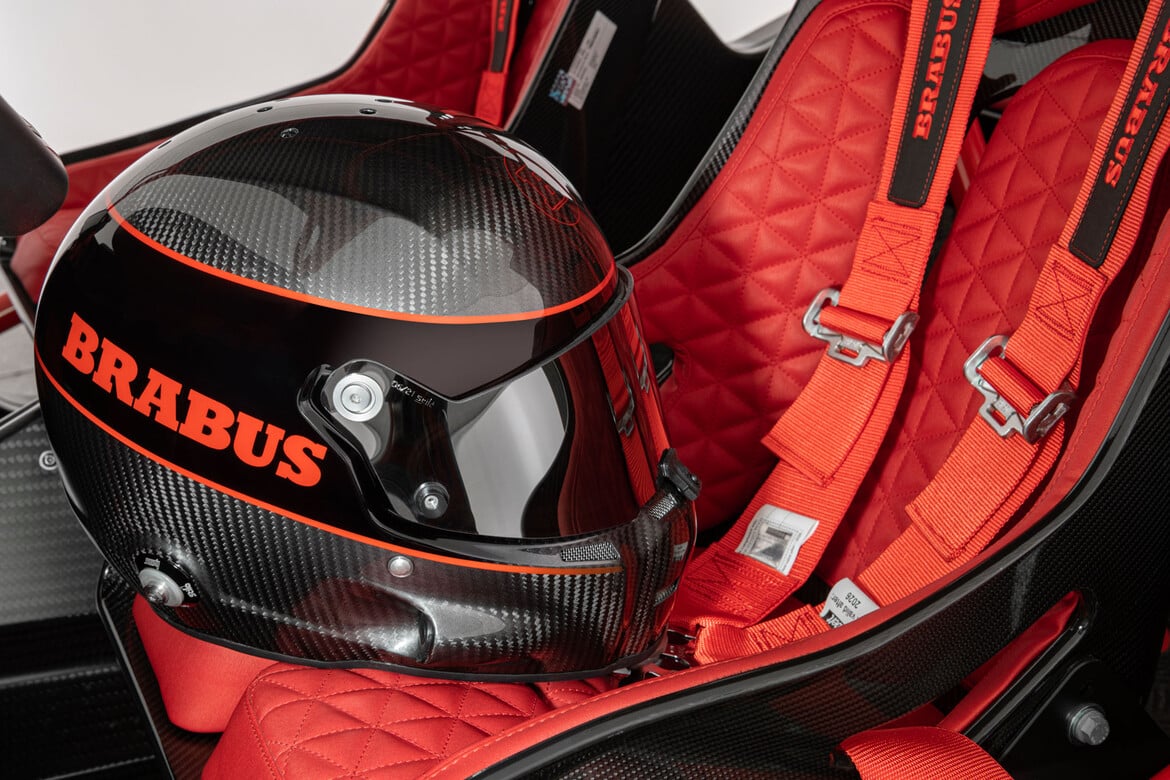

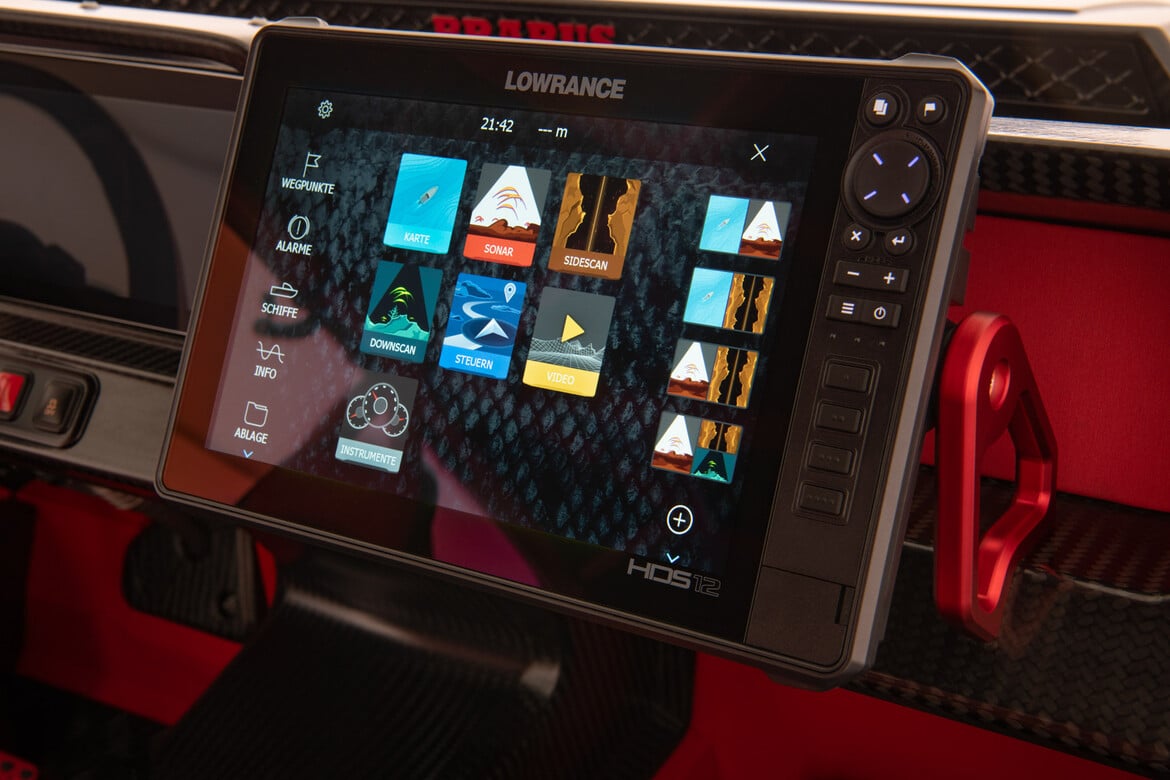

To ensure you stay in control of your adventure across the uncharted at all times, the BRABUS Crawler is also equipped with a state-of-the-art GPS navigation system, placed discreetly in front of the co-pilot seat. Depending on your individual area of operation, we supply specifically compiled digital map material upon request. Red anodized elements around the interior such as pedals, footrests and the high-quality aluminum GPS unit mounts provide striking contrast. For communication between the individual crew members, the BRABUS Crawler features a sophisticated 2-way communication system – which can be used with the dedicated intercoms integrated into the four included BRABUS carbon helmets or other headsets.

Equipment highlights

Design & Exterior

BRABUS tube frame made of high strength steel
High-strength mounts for the BRABUS portal axles
BRABUS portal axles front and rear
Open BRABUS Carbon body without doors

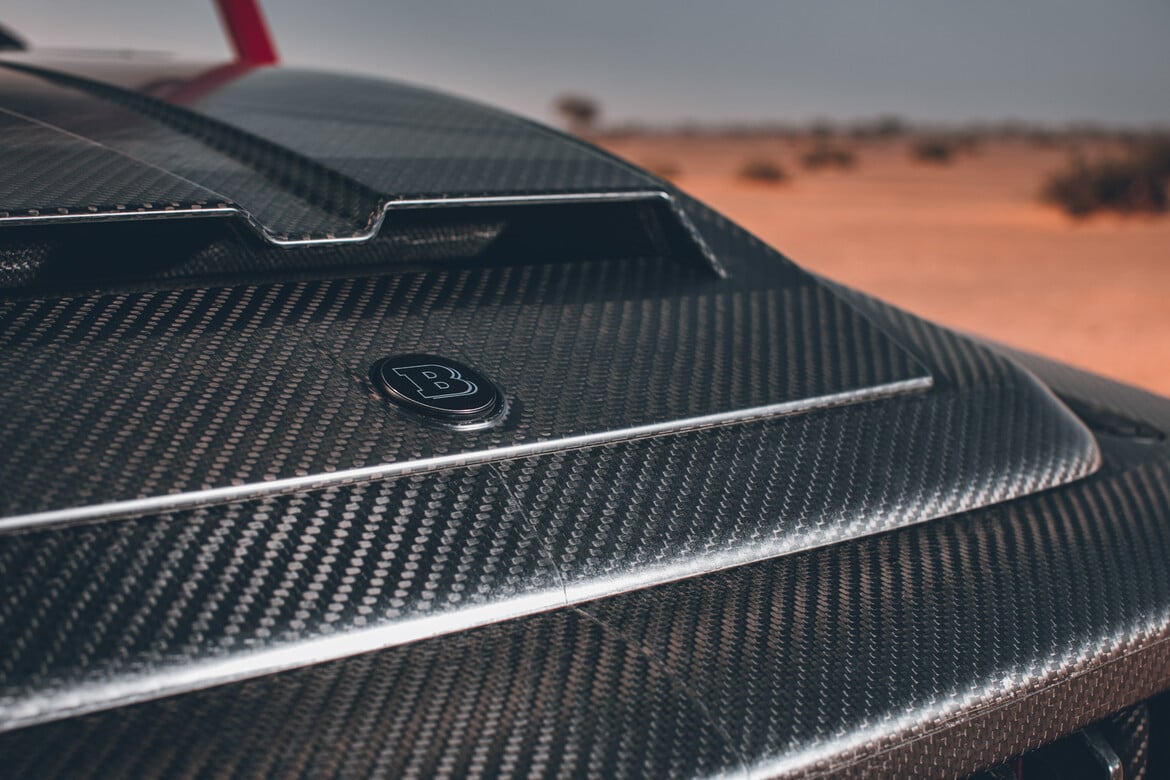

BRABUS Carbon hood with integrated air intakes and air outlets
BRABUS Carbon roof panel

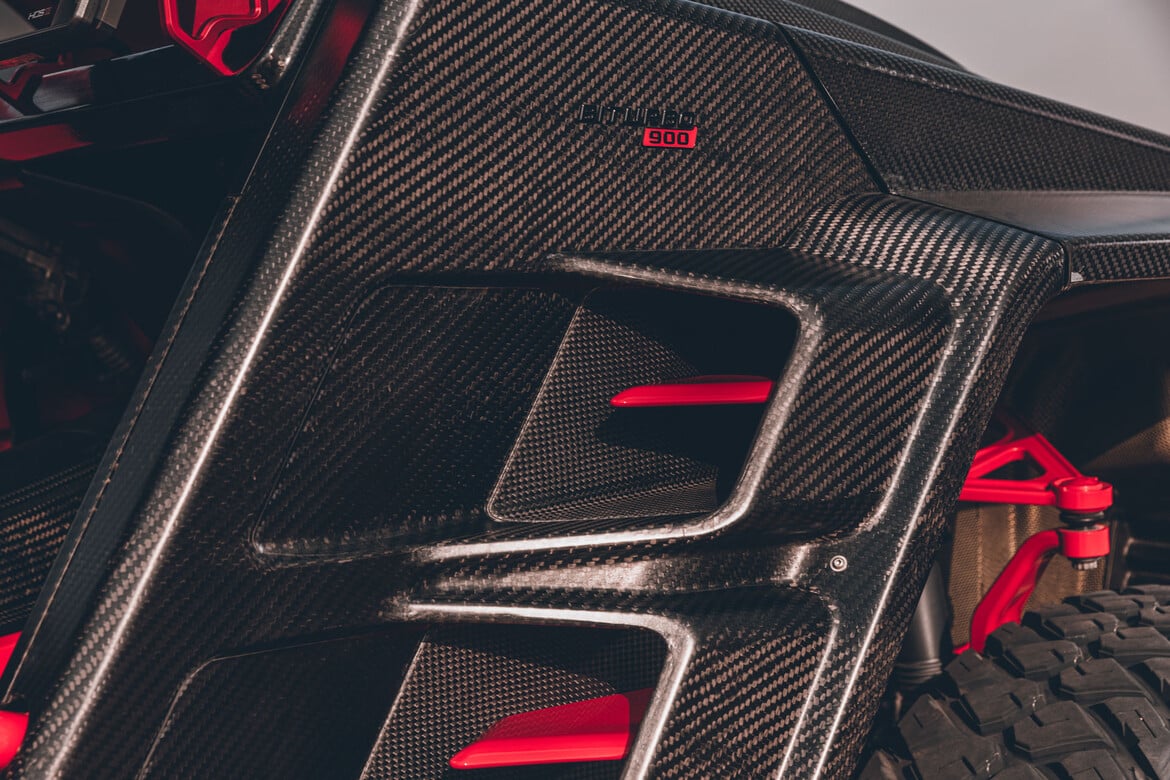

BRABUS Carbon fenders with side skirts and side steps
BRABUS wheel arch linings made of durable carbon Kevlar
BRABUS carbon roof attachment with central air intake for ventilation of the rear seats and two LED light modules
BRABUS Carbon roof spoiler
BRABUS underbody panels made of aluminum and resistant Carbon Kevlar
BRABUS double B logo for front grille
BRABUS lettering for rear

Power & Sound

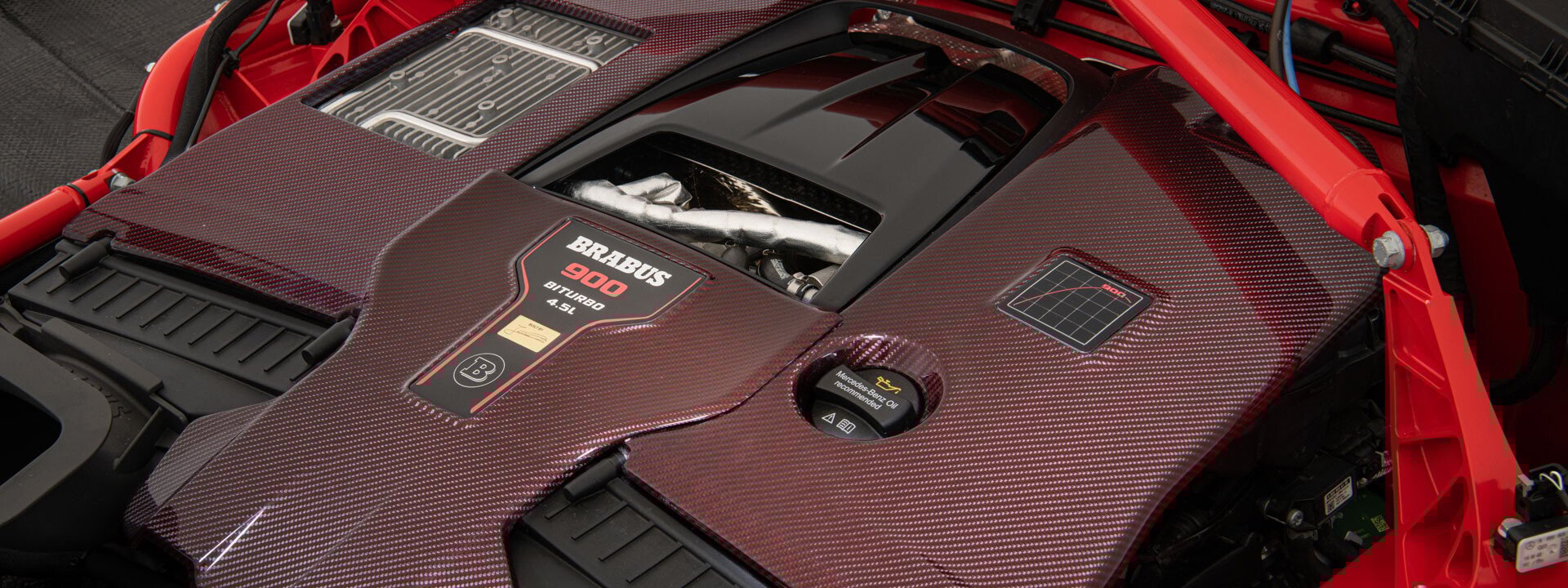

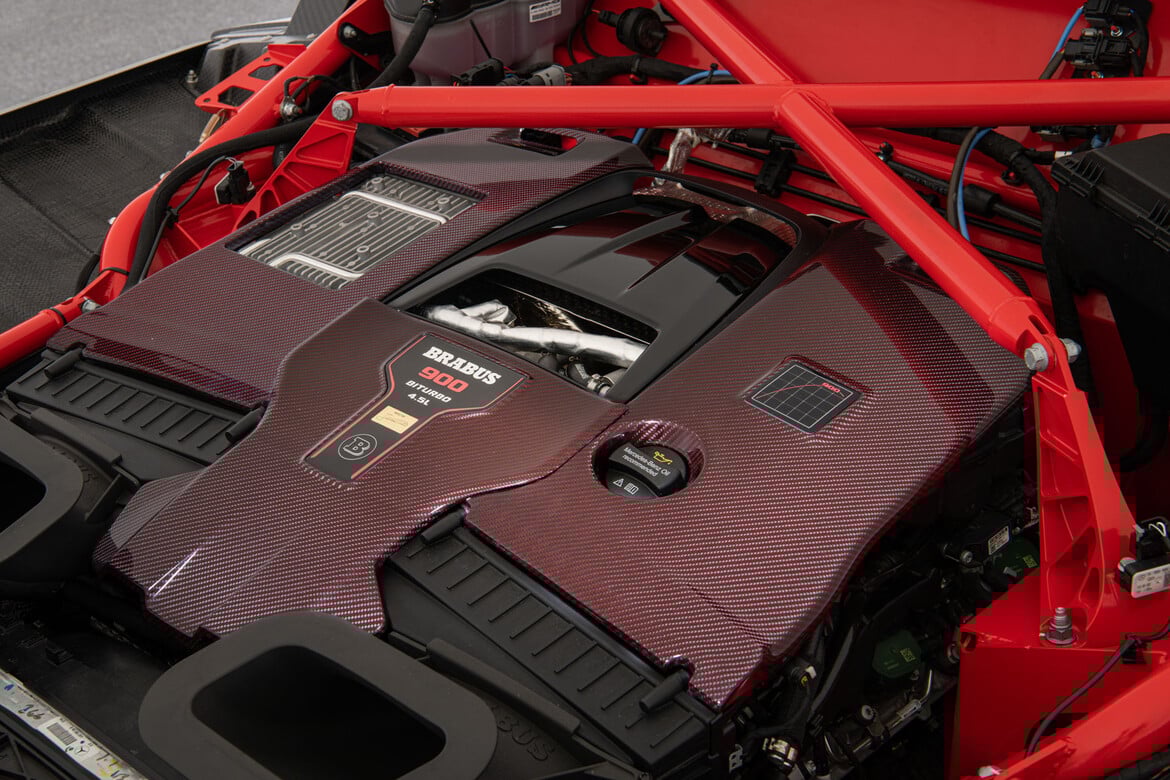

BRABUS ROCKET 900 4.5l V8 Biturbo engine
Displacement:4.407 cm³
Power:662 kW (900 hp) bei 6.200 rpm
Torque:1.250 Nm bei 2.900 rpm.
(electronically limited to 1.050 Nm)
Displacement extension to 4.5 liters consisting of:
Special crankshaft milled from the solid and finely balanced with stroke 100 mm
8 special connecting rods milled from the solid
8 Forged pistons for 84 mm bore and adapted compression height
2 BRABUS special turbochargers with larger compressor unit (ø 52 mm) and two modified trunk groups with reinforced axial bearings
2 fuel high-pressure pump with increased flow rate
Fuel booster pump package
Down Pipe Ø 75 mm
Back pressure lowering metal catalytic converter system with high performance particulate filter
RAM-AIR intake system. Maximum boost pressure 1.4 bar
Exhaust System
BRABUS stainless steel high-performance exhaust system with exhaust flap control and two tailpipes in sidepipe design on each side of the vehicle
BRABUS BoostXtra – Blow Off Ventil adapter
Force Transmission
Permanent all-wheel drive with electronically controlled differential locks
9-speed automatic transmission, optionally with manual gearshift via BRABUS RACE shift paddles on steering wheel
Control Unit/ Module
Specially applied BRABUS data stand for the engine control unit

Wheels & Suspension

Front Axle
Independent chassis, double wishbone, coil spring made of high-strength steel wire
Front suspension strut milled from solid
Special anodized surface finish
Integrated heat sinks on front and rear axle, dampers 4-fold adjustable (rebound/compression - high speed/low speed)
Rear Axle
Rigid axle, trailing arm, coil spring made of high-strength steel wire
Shock absorber milled from solid
Special anodized surface finish
Shock absorber 4-way adjustable (tension/compression - high speed/low speed)
BRABUS Monoblock HD wheels with 8-hole connection, one-piece, forged
color: "gunmetal black", partly polished
9,5J x 20 H2 ET 58
Heavy-duty off-road tires:
LT40 x 13.50 R20 Maxxis Razr MT 128Q POR
Brake System
Dual-circuit brake system with internally ventilated and perforated steel brake discs
ABS system
ESP, switchable in two stages (Sport & Off)
Electric parking brake, automatic & manual
Front BrakeBrake discs with 400 mm diameter and fixed calipers
Rear BrakeBrake discs with 370 mm diameter and fixed calipers


Intercom Communications System consisting of:
Offshore VHF Intercom
Integrated intercom with 4 headsets
Connection with up to 4 helmets (included)
Equipped with PTT button and connection to VHF wireless device
Integrated Bluetooth available
GPS Off Road Navigation consisting of:
12" screen
- Raster maps
- Topographic maps
- Satellite imagery
- Point to Point Navigation
- route recording
- gpx import and export

Maps are made on customer's request for the corresponding area of application
Waterproof IPX7 with closed SD card slot
Operating temperature -15°C to 55°C
BRABUS Interior
Carbon racing seats with BRABUS Marine TechFX seat cover

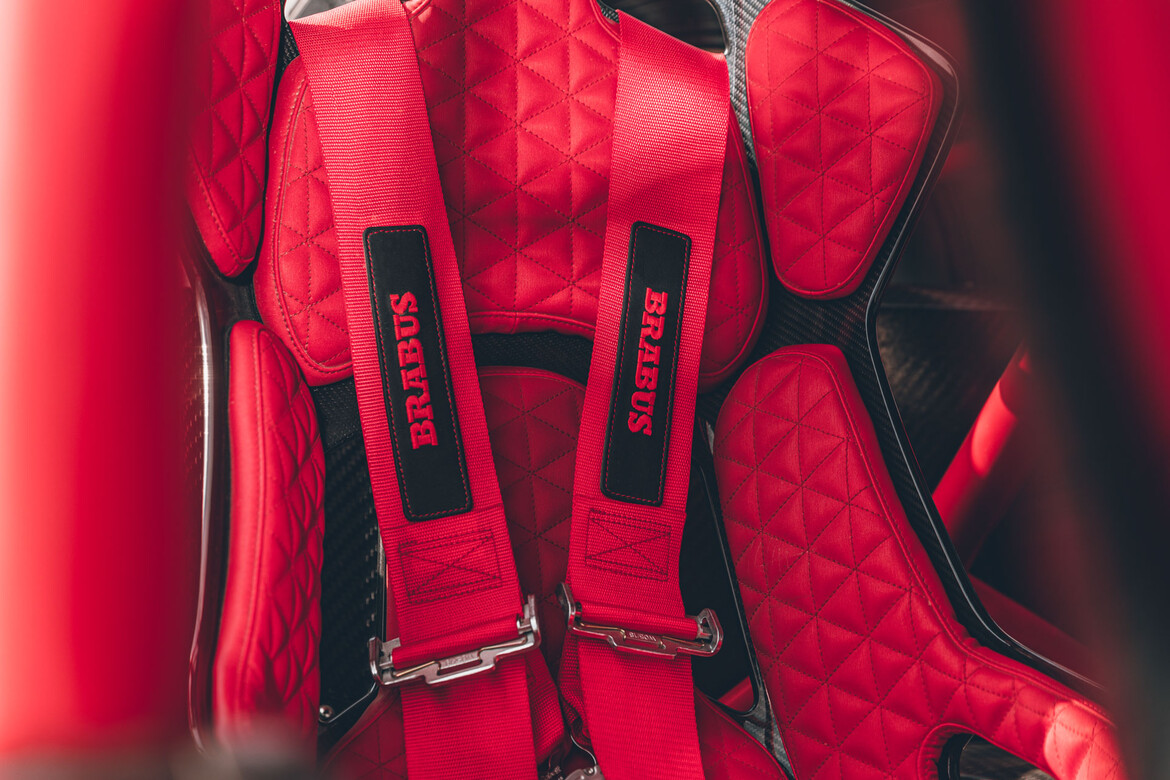

Four-point seat belts with BRABUS logo
Steering wheel in leather/Alcantara with BRABUS logo
BRABUS air vents in the roof for front seats & rear seat
BRABUS Carbon dashboard
BRABUS Design Appointment for interior, trim parts in "red matt"

Vehicle dimensions

Length4624,00 mm
Width2105,00 mm
Height2337,00 mm
Empty weight2065 kg
Total mass3200 kg
Tank capacity/reserve100l / 12l

Performance & Fuel Economy

Technical Data

Engine size4407 cm3
Power662 kW / 900 hp
Torque1250 Nm
0-100 km/h3.4 s
0-60 mph3.4 s
Vmax160 km/h / 99 mph

Fuel Economy


* All stated driving performance figures given are approximate. They depend on vehicle-specific details such as vehicle type, equipment, curb weight, rear axle ratio, wheel-tire combination, transmission design and aerodynamic equipment of the individual vehicle. Information on performance enhancements and/or performance kits is to be understood as average values. Test-related deviations of +/- 5% are possible. Information on the overall performance of factory engines modified by performance upgrades and/or performance kits is based on the manufacturer's specifications in the vehicle registration document, which in turn may deviate by +/- 5%. BRABUS does not assume any liability for any additional reduced performance of factory engines. Subject to technical changes. The stated values were determined according to the prescribed measuring procedure (Directive 80/1268/EEC in the currently valid version). The data do not refer to an individual vehicle and are not part of the offer, but serve solely for comparison purposes between different vehicle types.

** The torque was electronically regulated from 1250 Nm to 1050 Nm.
*** Vehicle is not homologated and without road approval.
