BRABUS INVICTO LUXURY VR6 Plus ERV fully certified armoured vehicle with blast protection

Power 588 kW / 800 PS | Torque 1000 Nm | 0-100 km/h 8.2 s | Vmax 210 km/h / 130 mph
Fuel Economy* city 27,6 l/100km | highway 18,6 l/100km | combined 21,3 l/100km | CO2 491 g/km

Invicto Luxury - the tailormade BRABUS invicto

Safety at the highest level of comfort – that’s INVICTO LUXURY. Configure the interior and exterior as well as the performance of the INVICTO individually with the BRABUS product range according to your wishes with highest design and quality standards. The INVICTO LUXURY combines – nearly invisible – maximum protection of class VR6 plus ERV with stylish interior design at its highest level.

Invicto Shelter Cell. Full metal jacket.

The highest technical standards were also paramount for Brabus Automotive when it came to developing the new armoured vehicle based on the Mercedes-Benz G-Class. Right from the very start, the overall ballistic concept was designed for a maximum protective effect corresponding to the level of OEM factory armour plating. Unlike with other retroactively armour plated vehicles, the components of the protection system were not individually welded into the vehicle’s bodywork structure; rather, the engineers at Brabus Automotive developed a self-contained, self-supporting, bolted structural cell, the so-called INVICTO Shelter Cell. It is inserted into the body shell in a disassembled state and then constructed. One of the structural features of the shelter cell is the zero-joints design which means that there is absolutely no entry narrowing – similar to a vehicle armour plated in an OEM factory. The armour components are mounted to the shelter cell without any gaps. Unavoidable weld seams, on the doors for example, are achieved with material overlapping and so-called labyrinths. The design of the upper windscreen frame is also innovative.

It was only once the individual elements of the shelter cell proved their protective effect that the entire cell was tested in the vehicle. Every single material pairing and screw connection was tested by being shot at from several angles and at projectile speeds which are well beyond the standard speed of the calibre being protected against.

Power & Sound. Outstanding performance.

Maximum performance for the G63 with the B40S-800 performance kit. Each kit consists of two BRABUS special turbochargers with larger compressor unit (ø 52 mm) and modified core assemblies with reinforced axial bearings. The performance increase is completed with the BRABUS PowerXtra control module for the engine control unit. In addition to a bump in peak torque from 850 Nm to 1,000 Nm, the rated output jumps by 158 kW/215 hp from 430 kW/585 hp to 588 kW/800 hp. The plug-and-play control unit is adapted to the production electronics.

The 4.0-liter, twin-turbo V8 powersource with BRABUS 800 PowerXtra + specification delivers an output of 588 kW / 800 hp (789 bhp) and 1,000 Nm (737 lb-ft) of torque. The top speed is electronically limited to 210 km/h (130 mph).

Wheels & Chassis. Heavy duty.

The added weight of the overall vehicle due to the armour plating is comparatively low at around 1,000 kilograms, but the load-bearing capacity of the chassis must be modified to meet the high requirements of Brabus Automotive when it comes to driving dynamics and life span. The necessary adjustments cover the entire front and rear axle construction of the vehicle. The entire wheel suspension, for example, has been replaced by own new development, while frame reinforcements around the longitudinal beams and the spring dome increase the strength of the original vehicle structure. The obligatory verification of the new construction included simulations using the finite element method (FEM), component analyses, stationary endurance runs and road tests. Thanks to this process established by Brabus Automotive, the extreme lifespan requirement can be ensured in accordance with OEM requirements, even with materials under the greatest of loads.

To ensure a high degree of driving dynamics, Brabus Automotive equips the chassis with reinforced springs, stabilisers and shock absorbers. The shock absorbers of the active chassis now have a pipe diameter of 60 instead of the previous 50 mm. A modified braking system with 402-mm brake discs and six-piston brake callipers at the front and 380-mm brake discs and four-piston callipers at the back ensure adequate deceleration, even with the maximum additional load. Wheels with increased load-bearing capacity and a special run-flat system developed by Brabus Automotive round off the chassis adjustments of the vehicle.

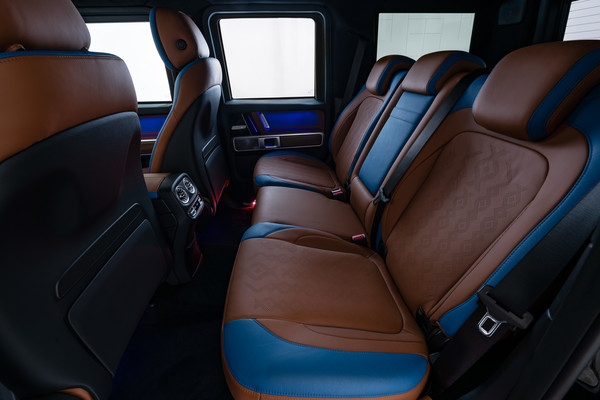

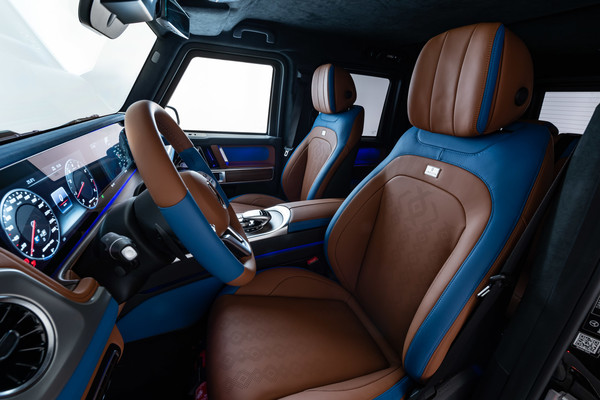

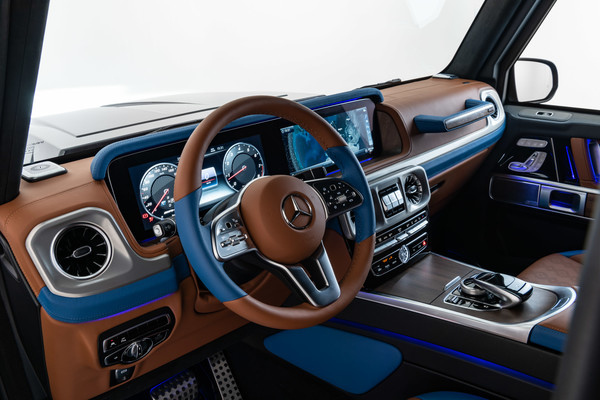

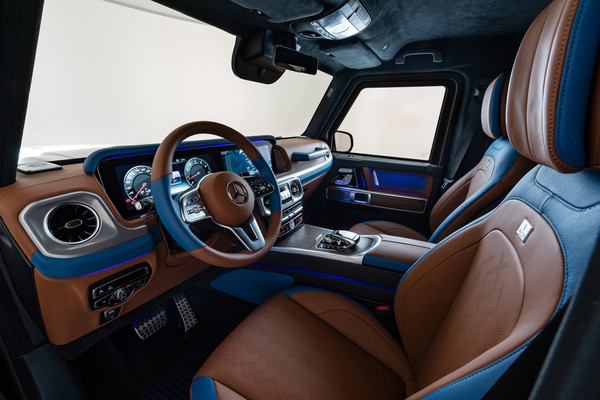

Interior. individual handmade masterpieces.

The INVICTO LUXURY – almost invisibly – combines maximum protection with a stylish, luxurious interior. Tailor-made BRABUS interior is individual haute couture for automobile dreams: whether
classic-modern, extravagant-sporty or very inventive - the INVICTO LUXURY presents stylish design at its highest level. Tailor-made, you can choose from luxurious precious woods, carbon fibres and glove-soft BRABUS fine leather in 3,500 colors. The finest BRABUS craftsmanship, the highest precision and the finest materials have always set standards and make your INVICTO unique.

Don‘t give up comfort for your personal safety, quite the contrary: the INVICTO Shelter Cell is hidden almost invisibly among the various interior variants.

EQUIPMENT HIGHLIGHTS

Armouring

INVICTO Shelter Cell, consisting of:

Hot formed armour steel plates
- 3D printed protection elements

- Fabric structures, fibre structures, ceramic and metallic composites

- Complete bulletproof glazing composites
Individual assemblies with blast protection ERV (Explosion Resistant Vehicle)
Maximum safety on VR6 Plus ERV niveau
Ballistic testing of very single material pairing and screw connection
Extreme long-life durability requirement while heavy material usage

Individualisation

Tailor-made and handcrafted interior in finest leather or Alcantara
Lightning and signal systems
Auxiliary roof lights
Fire extinguishing system
IR package including a night vision device
Fresh air system with ABC filter
Escape hatch on the roof

Wheels & Chassis

Reinforced springs, stabilisers and shock absorbers with extended diameter to 60 mm
Modified braking system
Front: six-piston brake callipers with 402mm brake disks
Rear: four-piston brake callipers with 380mm brake disks
Invicto wheels with higher load-bearing capacity
Brabus automotive run-flat system

Performance upgrade

PowerXtra (Powerboost)
BRABUS performance kit PowerXtra B40S - 800
consisting of:
2 BRABUS special turbocharger with larger compressor unit Ø 52 mm, 2 modified hull groups with reinforced axial bearing, BRABUS PowerXtra engine electronics control unit
Power: 588 kW ( 800 hp ) - series: 430 kW (585 hp)

Torque: 1.000 Nm at 6.600 rpm. (electronically limited)
Exhaust system
BRABUS valve-controlled sports exhaust system

Performance & Fuel Economy

Technical Data

Engine size3.982 cm3
Power588 kW / 800 PS
Torque1000 Nm
0-100 km/h8.2 s
0-60 mph8.2 s
Vmax210 km/h / 130 mph

Fuel Economy

city27,6 l/100km
highway18,6 l/100km
combined21,3 l/100km
CO2 Emissions491 g/km

Notices

* Alle angegebenen Fahrleistungen sind Näherungswerte. Sie sind abhängig von fahrzeugspezifischen Details wie Fahrzeugtyp, Ausstattung, Leergewicht, Hinterachsübersetzung, Rad-Reifenkombination, Getriebeausführung und aerodynamischer Ausrüstung des einzelnen Fahrzeugs. Angaben über Leistungssteigerungen und/oder Leistungskits verstehen sich als Durchschnittswerte. Prüfbedingte Abweichungen von +/- 5% sind möglich. Angaben über die Gesamtleistung durch Leistungssteigerung und/oder Leistungskits veränderter Werksmotoren basieren auf den Herstellerangaben im Fahrzeugbrief, die ihrerseits +/- 5% abweichen können. Für darüber hinausgehenden Minderleistungen von Werksmotoren übernimmt BRABUS keine Gewähr. Technische Änderungen vorbehalten. Die angegebenen Werte wurden nach dem vorgeschriebenen Messverfahren (Richtlinie 80/1268/EWG in der gegenwärtig geltenden Fassung) ermittelt. Die Angaben beziehen sich nicht auf ein einzelnes Fahrzeug und sind nicht Bestandteil des Angebots, sondern dienen allein Vergleichszwecken zwischen verschiedenen Fahrzeugtypen.

** Preisangabe gültig ab Werk Bottrop.
*** Das Drehmoment wurde elektronisch reguliert.

Efficiency & Fuel Economy

Fuel Economy*
city 27,6 l/100km
highway 18,6 l/100km
combined 21,3 l/100km
CO2 491 g/km

CO2-Efficiency*

A+ABCDEFGG

* Determined based on the measured CO2 emissions in consideration of the vehicle mass.
